Applicable products
Product size: maximum width 400mm

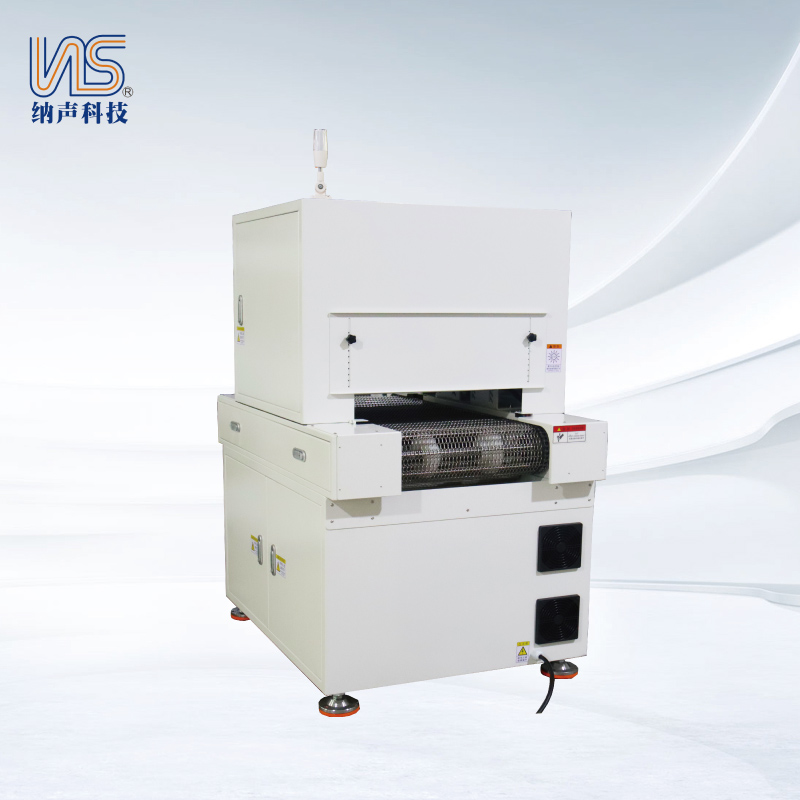

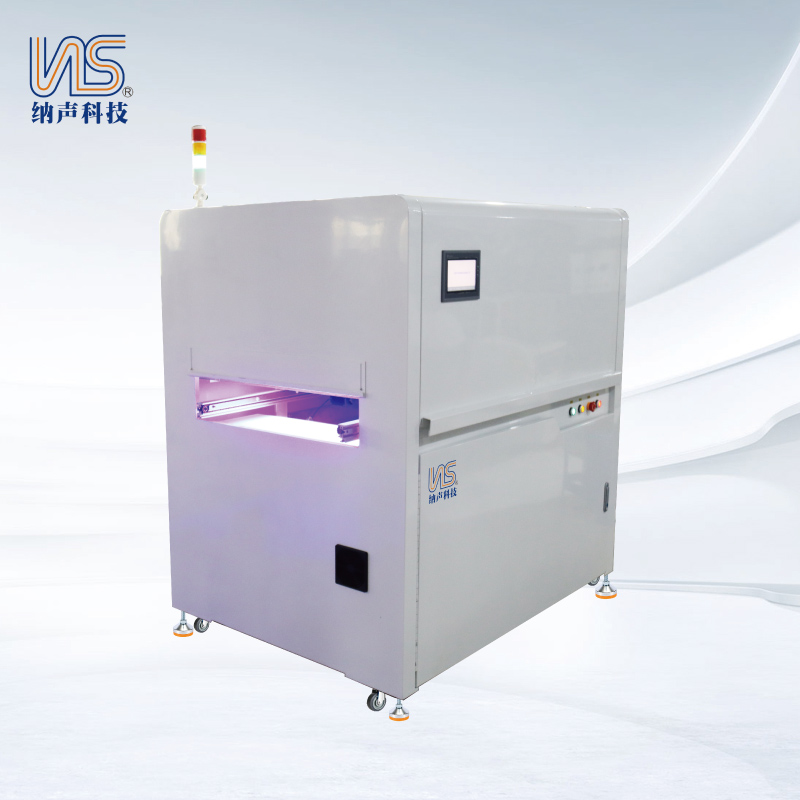

| New energy uv curing machine (customized) | ||
| Model：NS.FB.2022011501WF | ||
| Applicable products | ||
| Product size: maximum width 400mm | ||
| Functions and characteristics | ||
| ·LED lamp bead adopts imported light UVLED lamp bead, which has slow attenuation and long service life. | ||
| ·LED lamp beads are equipped with protection functions such as short circuit, overcurrent and overtemperature. | ||
| ·The power of light source can be set independently and displayed as a percentage, and the power adjustment accuracy reaches 1%. (The starting power of curing equipment is 100% 8-10%) | ||
| ·With automatic, manual, step, pulse and other irradiation modes. | ||
| ·Equipped with perfect external I/O control interface to realize perfect connection with automation equipment; | ||
| ·Touch operation panel, simple and intuitive operation. | ||
| ·Scientific heat dissipation structure design to ensure the normal range of equipment working temperature and constant output of optical power. | ||
| Functions and characteristics | ||
| luminous power | 365nm:900mw/cm2（The light power can be adjusted according to the light source power） | |
| Transmission speed | 0.5-5m/min adjustable | |
| Irradiated area | ||
| Illumination distance | 10mm~150mm(Manual Adjustment) | |
| power consumption | 8350w | |
| Product temperature | ≤50°C | |
| outline dimension | Irradiate the head：600mm(L)*200mm(W)*110mm(H) | Conveyors：1600mm(L)*1100mm(W)*1515+25mm(H) |
| Power supply specification | (1).220VAC/50HZ; | (2).22.0 The machine comes with a 2m long wire |
| Conveying belt | Stainless steel mesh belt (mesh belt size: 400X2000) | |
