  • Two-component AB screw valve-concentric wheel series

Two-component AB screw valve-concentric wheel series

Two-component mixing and dispensing system: the volumetric output of two-component materials is truly realized. The minimum dosage of two-component liquid and paste is accurately mixed and dosed. Through the target control of one-component materials, the mixing ratio is set to two decimal places. No matter what the viscosity of the material is, it can realize clean and reliable material transportation through two components. Two-component series dispensing pump can realize controllable thread cutting because of its suction function; Its pressure monitoring can realize the reliability of the process, and also has some other functions. The two-component dispensing pump is simple to operate and has a wide ra

nge of safe applications. You are welcome to experience this precision machinery and advanced digital control technology yourself.


Share

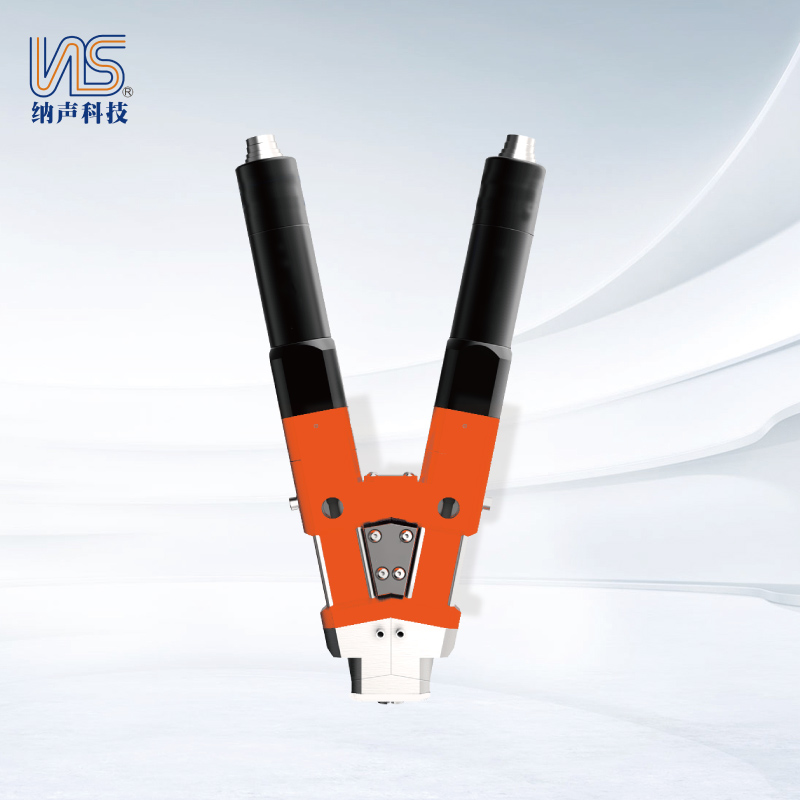

Two-component AB screw valve-concentric wheel series
Two-component AB screw valve


Two-component mixing and dispensing system: the volumetric   output of two-component materials is truly realized. The minimum dosage of   two-component liquid and paste is accurately mixed and dosed. Through the   target control of one-component materials, the mixing ratio is set to two   decimal places. No matter what the viscosity of the material is, it can   realize clean and reliable material transportation through two components.   Two-component series dispensing pump can realize controllable thread cutting   because of its suction function; Its pressure monitoring can realize the   reliability of the process, and also has some other functions. The   two-component dispensing pump is simple to operate and has a wide ra
    nge of safe applications. You are welcome to experience this precision   machinery and advanced digital control technology yourself.

Product parameter

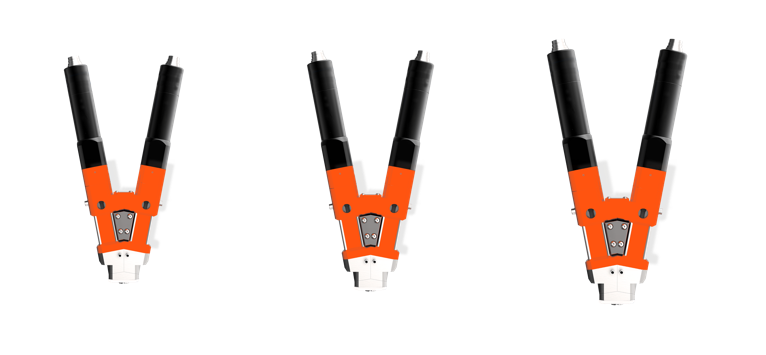

product modelNS.   LGF330. S (S stands for: Double)NS.LGF450.SNS.LGF600.S
outline dimension228   mm x 163 mm228   mm x 163 mm301   mmx 163 mm
weight1230g1230g1880g
working pressure0-20   bar0-20   bar0-20   bar
Conveying pressure40   bar40   bar40   bar
viscosityWater   to pasteWater   to pasteWater   to paste
volume flow0.1-6.6   ml/min(at 1:1)0.1-6.6   ml/min(at 1:1)0.1-6.6   ml/min(at 1:1)
Minimum dosing quantity0.005   ml0.010   ml0.030   ml
Conveying accuracy土1%土1%土1%
Working temperature10-40°C10-40°C10-40°C
repeatability>99%>99%>99%
