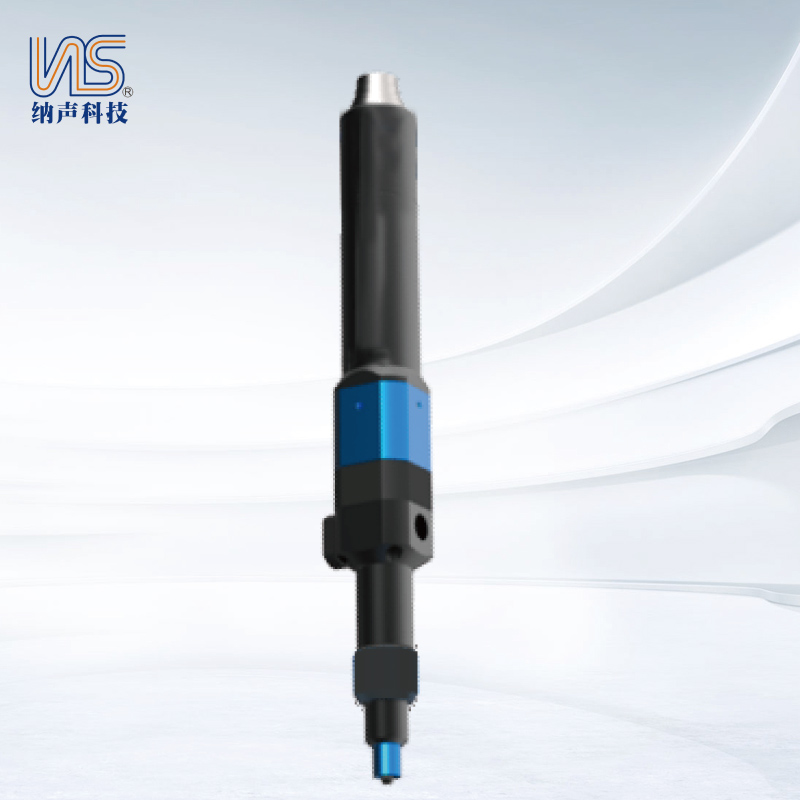

Screw valve is a real volumetric dispensing system, which adopt s high-precision dispensing technology and can realize the mini mum amount of one-component fluid transportation. Based
on the tried and tested principle of infinite circulation piston, it can realize the perfect dispensing from water to paste liq uid. No matter what the viscosity of the material is,
it can realize clean and reliable accurate dose dispensing. From the control unit to the dispensing pump, it represents high qu ality. It always follows the motto of "smaller, more
accurate and more economical" and is suitable for manual workst ations (such as workbench applications) or semi-automatic and f ully automatic operations.

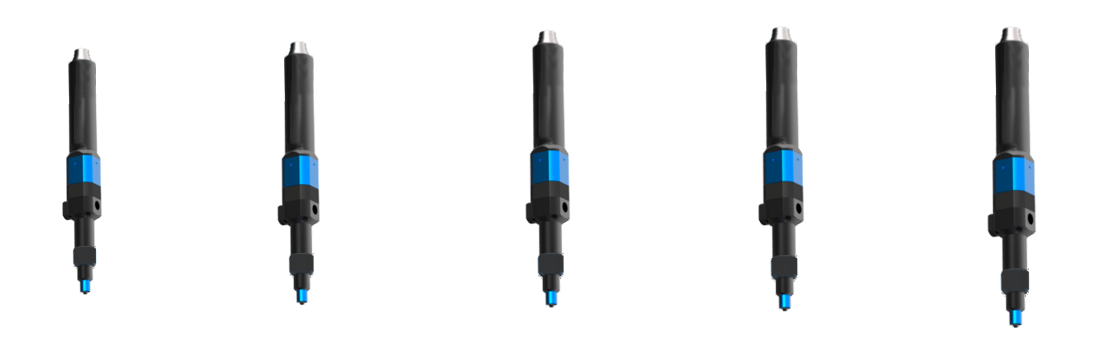

| One-component screw valve series-concentric wheel series | |||||
| One-component screw valve | |||||
 | |||||
| Screw valve is a real volumetric dispensing system, which adopt s high-precision dispensing technology and can realize the mini mum amount of one-component fluid transportation. Based on the tried and tested principle of infinite circulation piston, it can realize the perfect dispensing from water to paste liq uid. No matter what the viscosity of the material is, it can realize clean and reliable accurate dose dispensing. From the control unit to the dispensing pump, it represents high qu ality. It always follows the motto of "smaller, more accurate and more economical" and is suitable for manual workst ations (such as workbench applications) or semi-automatic and f ully automatic operations. | |||||
| Product parameter | |||||
| product model | NS.LGF300 | NS.LGF330 | NS.LGF450 | NS.LGF600 | NS.LGF7003D |
| outline dimension | Length: 216 mm *33 mm | Length: 225 mm *33 mm | Length: 228 mm *33 mm | Length: 274 mm x 40mm | Length: 274 mm x 40mm |
| weight | 280g | 300g | 300g | 650g | 650g |
| working pressure | 0-6bar | 0-6bar | 0-6bar | 0-6bar | 0-6bar |
| Conveying pressure | 20 bar | 20 bar | 20 bar | 20 bar | 10bar |
| viscosity | Water to paste | Water to paste | Water to paste | Water to paste | Water to paste |
| volume flow | 0.12-1.48ml/min | 0.2-3.3ml/min | 0.5-6.0ml/min | 1.4-16.0ml/min | 5.3-60.0ml/min |
| Minimum dosing quantity | 0.001 ml | 0.002 ml | 0.004 ml | 0.015 ml | 0.060 ml |
| Conveying accuracy | 土1% | 土1% | 土1% | 土1% | 土1% |
| Working temperature | 10-40°C | 10-40°C | 10-40°C | 10-40°C | 10-40°C |
| repeatability | >99% | >99% | >99% | >99% | >99% |
