Product features
The vacuum of the bucket ensures that the glue is free from the interference of external environment
such as air and moisture.
Bucket heating, feed pump heating and feed tube heating are optional.
Through the unique glue circulation function, it is ensured that the glue will not precipitate in the static state, which will lead to the change of the performance of the glue material.

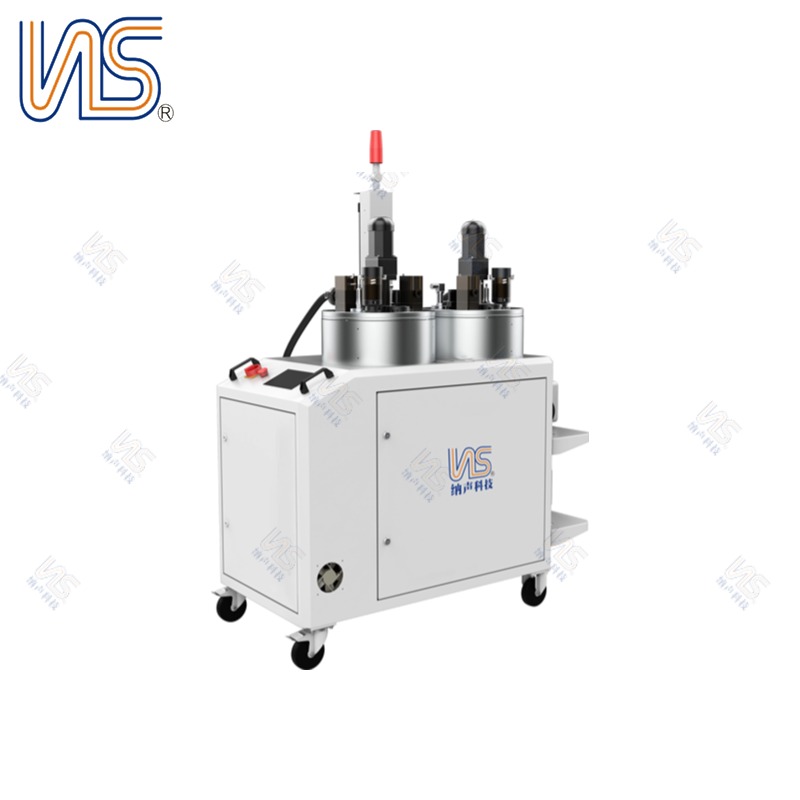

| Universal feeding unit | |
| NS300 | |
| |
| Product features | |
| The vacuum of the bucket ensures that the glue is free from the interference of external environment such as air and moisture. | |
| Bucket heating, feed pump heating and feed tube heating are optional. | |
| Through the unique glue circulation function, it is ensured that the glue will not precipitate in the static state, which will lead to the change of the performance of the glue material. | |
| Universal characteristics | |
| Applicable glue type: silica gel/epoxy/polyurethane, etc. | |
| Applicable glue: one-component or two-component glue, from low viscosity to high viscosity, suitable for low filler and high filler glue. | |
| Specification parameter | |
| Equipment size | 1500*2038*700mm |
| Barrel volume | 60L/45L/20L/10 |
| Cylinder liner volume of feed pump | 294 ml |
| Feed pump capacity/air supply pressure | 3-10 bar/6 bar |
| Stirring speed | 39 Rpm |
| Maximum heating temperature | 80 °C |
| power of motor | 400W servo motor actuating motor |
| Overall weight | 400 kg |
| Maximum heating temperature | 80 °C |
| Pipeline length | 3m/4m/5m/6m optional |
