Product features
The mixing ratio of one-component and two-component glue is fixed.
Volumetric values are not affected by temperature, material pressure and viscosity.
High repeatability and process reliability

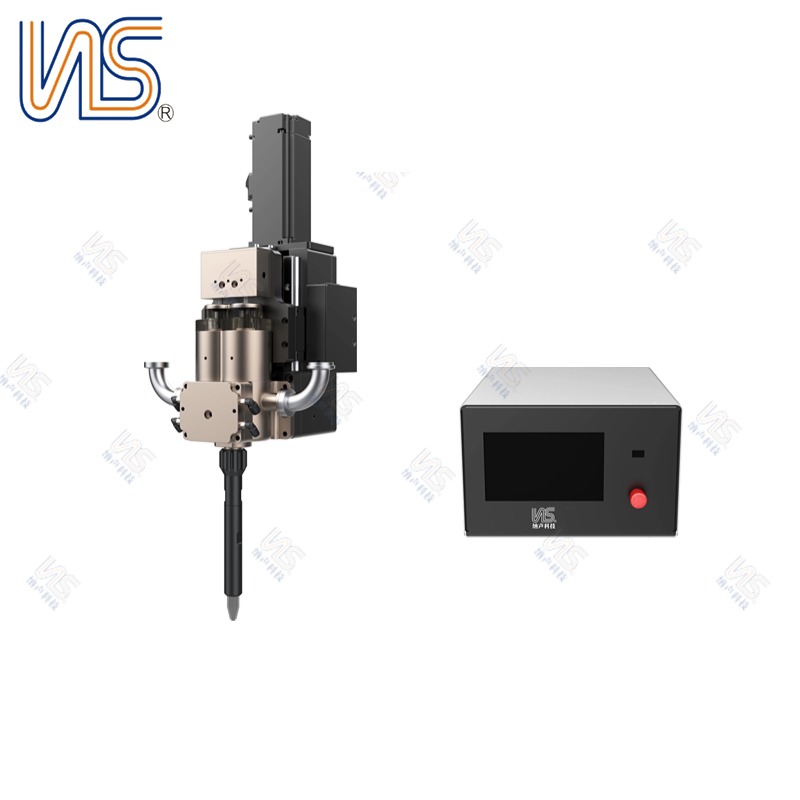

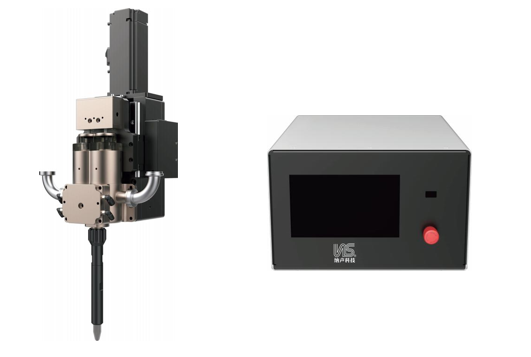

| Plunger glue injection head | |
| NS016 | |
| |
| Product features | |
| The mixing ratio of one-component and two-component glue is fixed. | |
| Volumetric values are not affected by temperature, material pressure and viscosity. | |
| High repeatability and process reliability | |
| Universal characteristics | |
| Applicable glue: one-component or two-component glue, from low viscosity to high viscosity, low, medium and high filler glue measurement | |
| Method: volume measurement (fix the glue ratio by changing the diameter of cylinder liner) | |
| Specification parameter | |
| Minimum dispensing amount | 0.1ml |
| Maximum dispensing amount | (One trip) 32ml |
| Maximum dispensing viscosity | For high viscosity thermal grease |
| Maximum dispensing speed | For conventional silica gel |
| Maximum heating temperature | 80 °C |
| Overall weight | 14 kg |
| power of motor | 400W servo motor actuating motor |
