Product features
It can be directly used in conjunction with a standard plastic bucket (5 gallons) without transferring materials to other containers, which can reduce the waste rate of raw materials to a very low level.
Suitable for media with high viscosity, poor fluidity and high solid content, with the highest viscosity reaching 1000000CPS.
Compact size, light weight, simple operation and convenient installation and operation.
Pumps of various specifications are assembled in a modular way, which is suitable for various flow intervals.

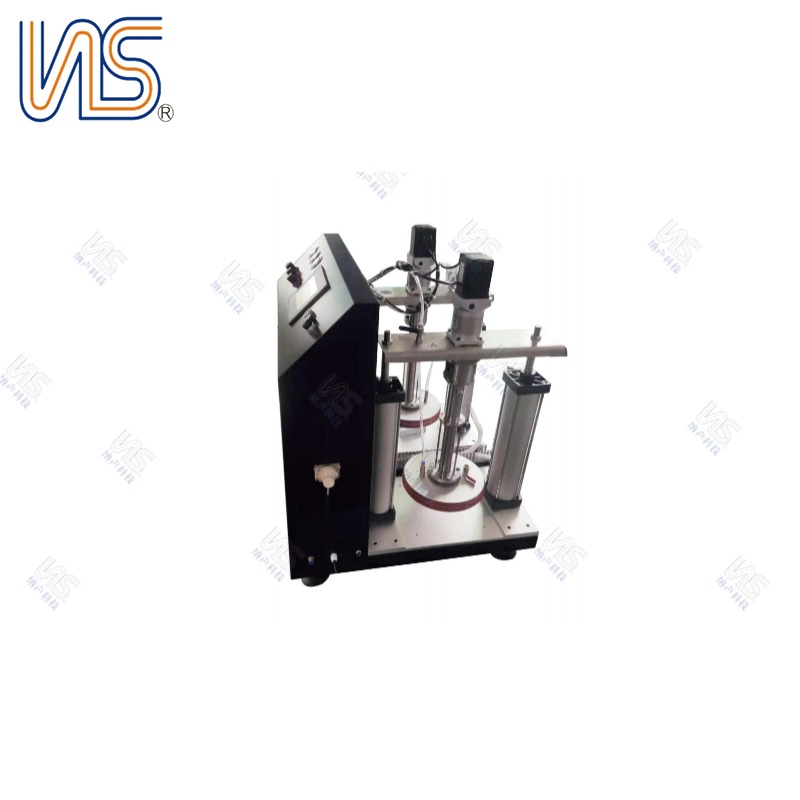

| Empty barrel pump (barrel cleaning pump, platen pump) | |||
| |||
| Product features | |||
| It can be directly used in conjunction with a standard plastic bucket (5 gallons) without transferring materials to other containers, which can reduce the waste rate of raw materials to a very low level. | |||
| Suitable for media with high viscosity, poor fluidity and high solid content, with the highest viscosity reaching 1000000CPS. | |||
| Compact size, light weight, simple operation and convenient installation and operation. | |||
| Pumps of various specifications are assembled in a modular way, which is suitable for various flow intervals. | |||
| Specification parameter | |||
| Equipment size | 910mm×700×970mm (The height of the cylinder is 1370mm when raised) | ||
| repeatability | ±1% | ||
| Transportable medium | ① Medium viscosity：≤1000000cps | ||
| ② Medium pressure：≤0.6MPa | |||
| ③ medium temperature：≤80℃ | |||
| Flow parameter | |||
| model | otation speed | Recommended glue output | Glue outlet pressure |
| NS-1.5CC-36H | 0~85rpm/min | 0.18~2.5 ml/s | 36 bar |
| NS-3CC-24H | 0~85rpm/min | 0.8~7 ml/s | 24 bar |
| NS-6CC-24H | 0~85rpm/min | 2.5~21 ml/s | 24 bar |
