product performance
Standard air pressure stabilizing circuit (PAT.) eliminates the deviation of discharge quantity and realizes excellent discharge accuracy. Compact design saves space.
| Dispensing controller series | ||
| Precision dispensing controller series | ||

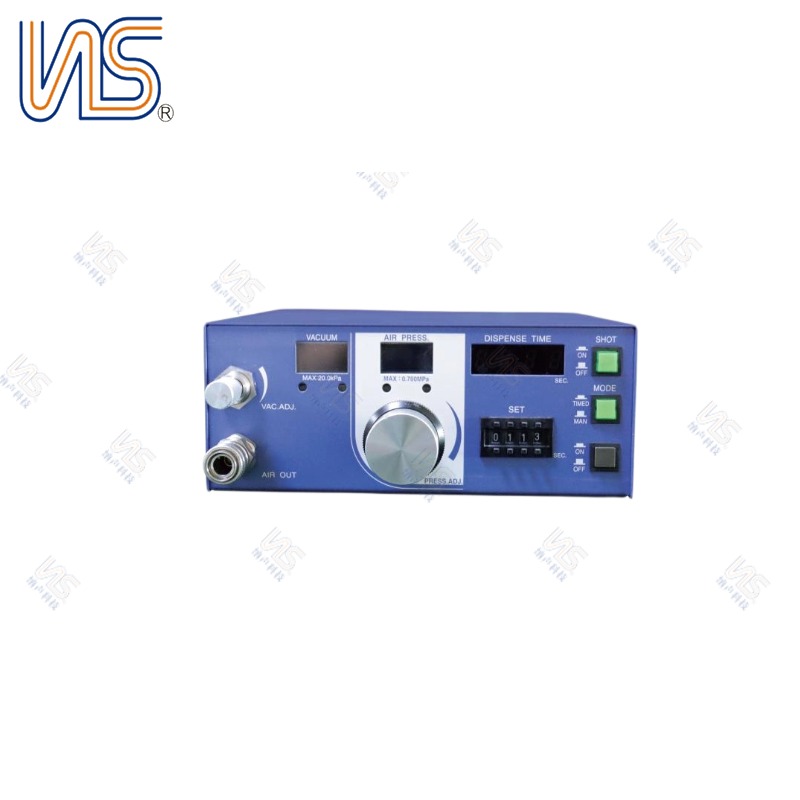

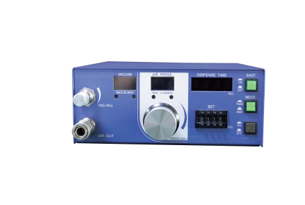

| Name: high-precision digital dispensing controller | ||
|
| ||
| product performance | ||
| Standard air pressure stabilizing circuit (PAT.) eliminates the deviation of discharge quantity and realizes excellent discharge accuracy. Compact design saves space. | ||
| Parameter specification | ||
| Dispensing method | Air compression mode | |
| Control mode | Microcomputer electronic/pneumatic control type | |
| Spitting mode | Timed mode/manual mode | |
| Discharge pressure/time setting range | 5~700 kPa/0.01~9,999 s | |
| Vacuum pressure setting range | 0~-20 kPa (at 400 kPa air pressure) | |
| output signal | Output dispensing/output dispensing (switching type) | |
| Power supply and frequency | AC100-240V 50/60 Hz | |
| Air supply pressure | attended mode | 6 One一touch connectar |
| range | The discharge is above+＋100 kPa maximum is 800 kPa. | |
| outline dimension | W188xD198xH84 mm | |
| Heavy weight | 3.4 KG | |
