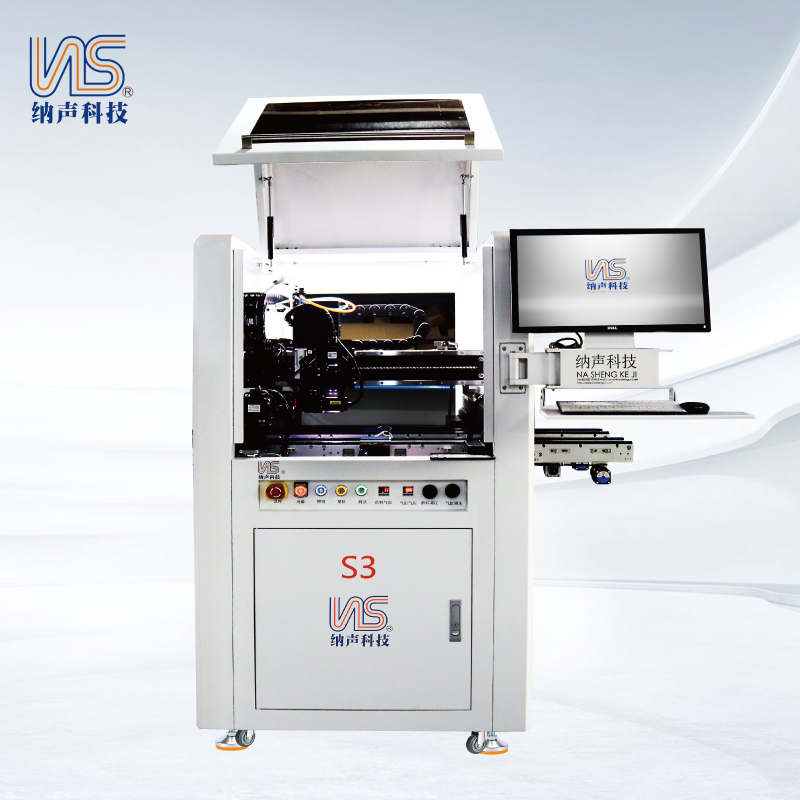

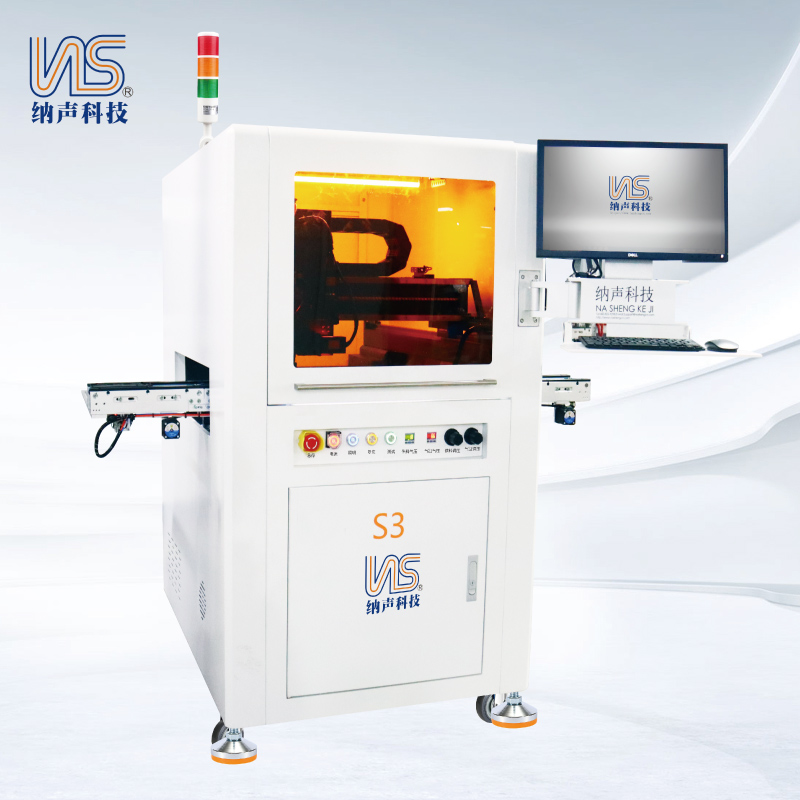

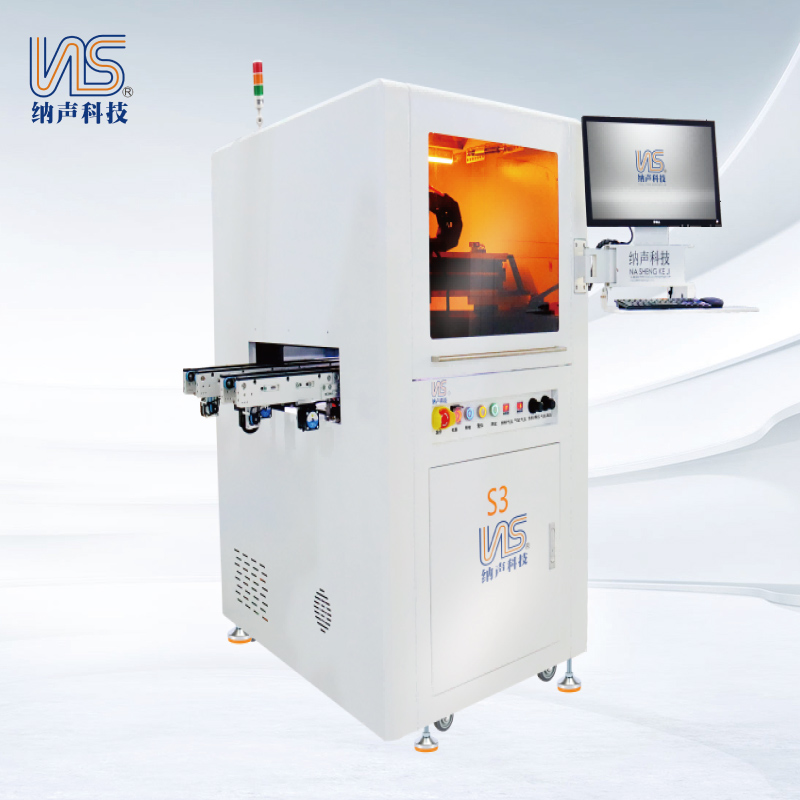

PL application industry
Filling, encapsulating and reinforcing the bottom of mobile phone frame, PCB, FPC and other components;
Precision dispensing of VCM, CCM, TWS, speakers, motors and other products;
Semiconductor system-level package SIP, MEMS precision dispensing, micro-dispensing solder paste, etc.
| technical parameter： | ||||
| product model | NS.SP.461HE-PL | NS.SP.4661HE-PL | ||
| Range of motion | （X/Y/Z）400/600/50mm | |||
| maximum load | (Z axis) 5KG (up to 7KG with optional brake module) | |||
| rate of travel | （X/Y axis）0.1-800mm/S（Z axis）0.1-400mm/S | |||
| repeatability | ±0.01mm | |||
| Track width adjustment range | Monorail: 60-470mm, maximum dispensing length: 475mm. | Double track: 60-200mm, maximum dispensing length: 475mm. | ||
| Docking height | Height of belt from ground to track: 900 mm (adjustable by 30 mm) | |||
| type of drive | Servo motor+screw module | |||
| Transmission mode | Stepper motor+runner | |||
| operator schema | Visual guidance | |||
| Programming mode | Keymouse+display | |||
| Visual positioning system | High-pixel industrial cameras are standard. | |||
| Recognition range | 30mm*30mm | |||
| power | 2000W | |||
| Input power supply | AC 110V/220V(Internal switching）50-60HZ | |||
| Working temperature | 5-40℃/20-90％No condensation | |||
| outline dimension | L840*W1140*H1500mm | |||
| Body weight (kg) | About650kg | About800kg | ||
| Product features | 1. Equipped with a heavy system to realize the closed loop of glue quantity; 2. Professional high-speed dispensing system, all common dispensing command processes such as high controllable points, straight lines, multi-segment lines, arc lines, circles and rectangular circles filling three-dimensional space trajectories; 3 configurable code scanning system, integrated pipeline management; 4. Automatically and quickly capture Mark positioning, search and identify the product contour, automatically correct and compensate, and the dispensing position is accurate; | 1. Double-track design, higher efficiency; 2. Professional high-speed dispensing system, all common dispensing command processes such as high controllable points, straight lines, multi-segment lines, arc lines, circles and rectangular circles filling three-dimensional space trajectories; 3 configurable code scanning system, integrated pipeline management; 4. Automatically and quickly capture Mark positioning, search and identify the product contour , automatically correct and compensate, and the dispensing position is accurate; | ||
