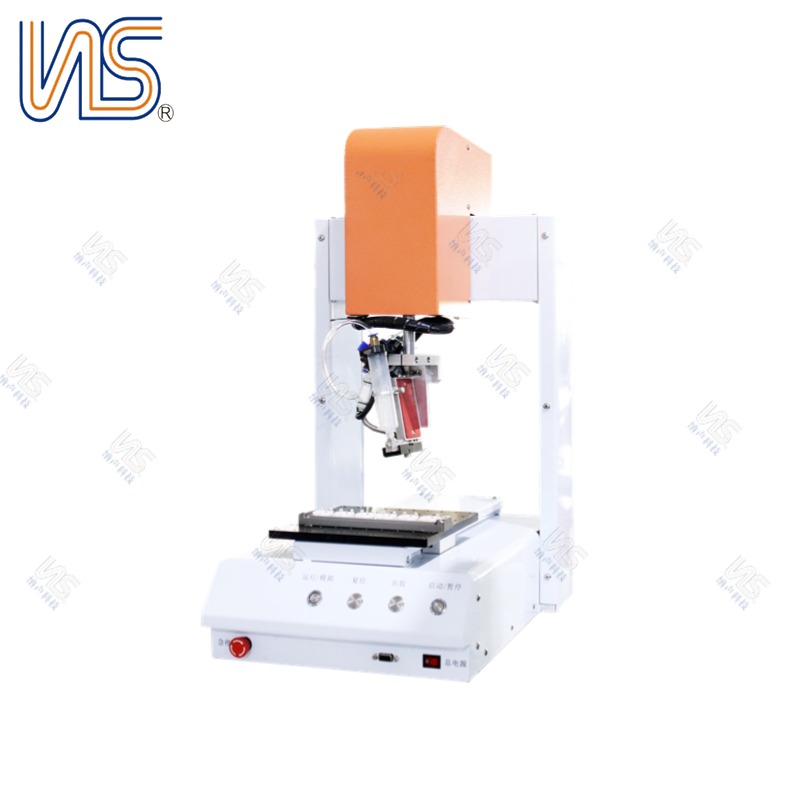

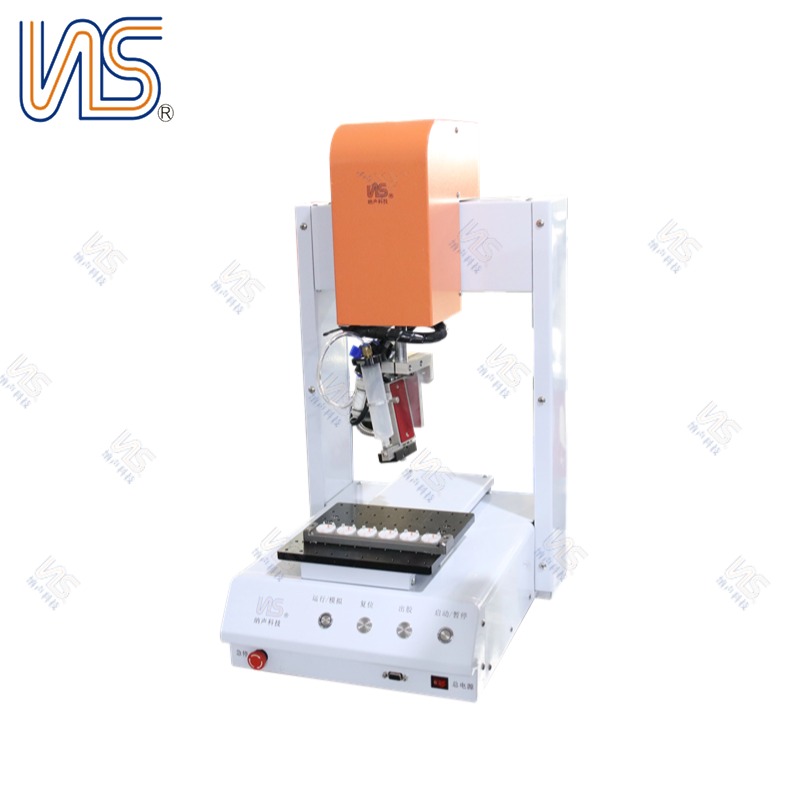

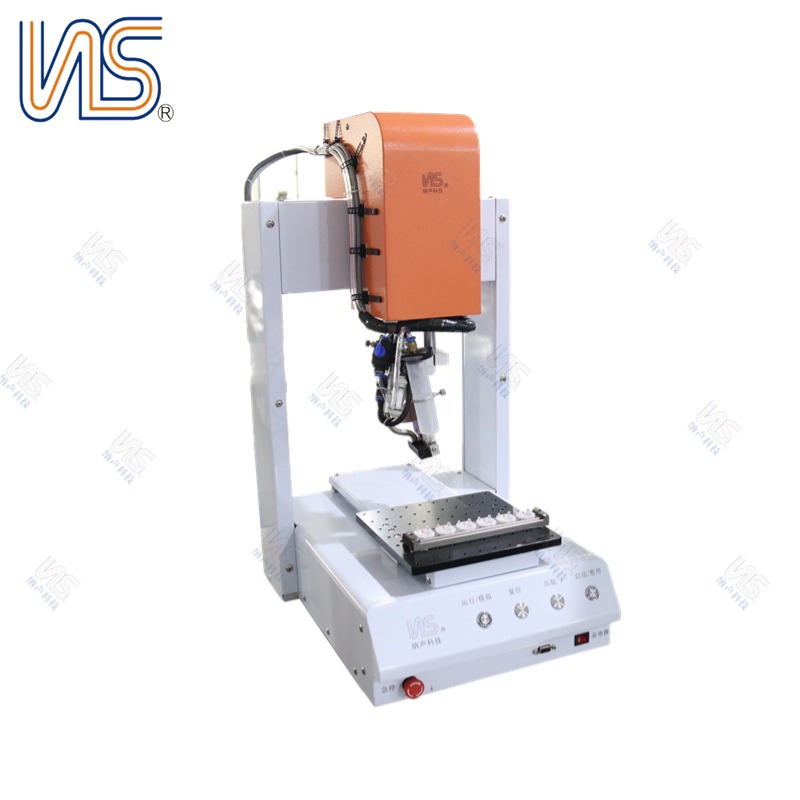

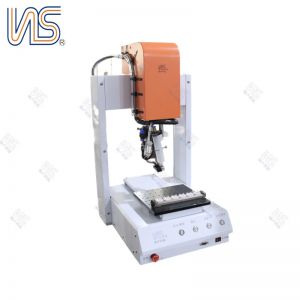

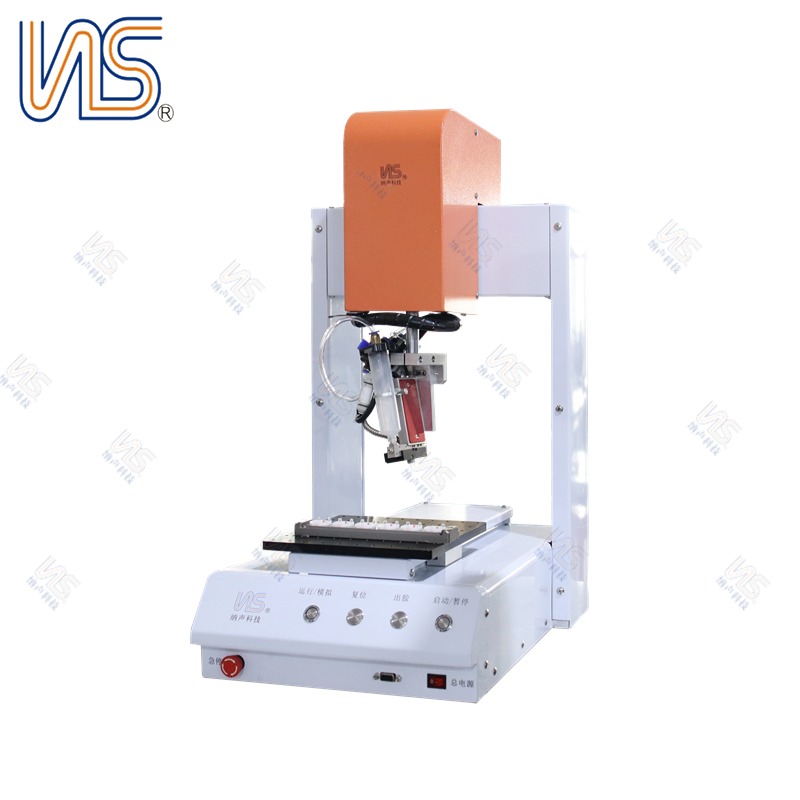

Peculiarity:
1.Economical, speed and precision meet the general production needs of the electroacoustic industry.
2.The operation is simple and convenient, high speed and precision. (1 times more accurate than similar products)
3.Trapezoidal acceleration and deceleration, speed foresight, micro-line segment interpolation and other technologies are used to realize arbitrary non-planar 3D point paths
4. Comprehensive dispensing process solutions, including early glue off, hysteresis opening, diagonal pull lift, speed change in motion, closed graphic circle number setting and other functions
5.Strong PC compatibility, with logoshop software, you can import mainstream design software (such as Jingdiao, AutoCAD, CoralDraw, etc.) to survive the file format (such as nc, al, DXF, JPG, BMP, etc.)
6.Realize functions such as online debugging with PC, and graphical WYSIWYG programming.
7.It is equipped with dispensing, vacuum suction and blowing functions, which is especially suitable for glue coating and product handling of mobile phone speakers, receivers, cameras and other products.
Peculiarity:
1.Economical, speed and precision meet the general production needs of the electroacoustic industry.
2.The operation is simple and convenient, high speed and precision. (1 times more accurate than similar products)
3.Trapezoidal acceleration and deceleration, speed foresight, micro-line segment interpolation and other technologies are used to realize arbitrary non-planar 3D point paths
4. Comprehensive dispensing process solutions, including early glue off, hysteresis opening, diagonal pull lift, speed change in motion, closed graphic circle number setting and other functions
5.Strong PC compatibility, with logoshop software, you can import mainstream design software (such as Jingdiao, AutoCAD, CoralDraw, etc.) to survive the file format (such as nc, al, DXF, JPG, BMP, etc.)
6.Realize functions such as online debugging with PC, and graphical WYSIWYG programming.
7.It is equipped with dispensing, vacuum suction and blowing functions, which is especially suitable for glue coating and product handling of mobile phone speakers, receivers, cameras and other products.
| Technical parameters： | ||
| Range of motion | (X)200/(Y)250/(Z)80mm | |
| Maximum load | Y, Z axis 8kg/4kg | |
| Movement speed | (XY)0.1-400/(Z)200mm/s | |
| Ability to decompose | 0.01mm | |
| Repeatability | ±0.02mm | |
| The number of program stores | Ultra-large capacity high-speed file storage, which can store 999 files. 56,000 points each (can support U disk copy) | |
| How it is displayed | Hand knitter | |
| Motor system | Japan microstepping precision motor | |
| Mode of operation | PTP＆PC | |
| Transmission mode | Timing belts | |
| Motion imputation | Any route in 3D stereoscopic space can be used | |
| Edit mode | Teaching box/PC | |
| I/O signals | 4Inputs/4Outputs (scalable to 12Inputs/Outputs) | |
| Teach the box control interface | RS232 | |
| Enter the power supply | AC 110V/220V(内部切换）50-60HZ | |
| power | 150W | |
| Working environment temperature and humidity | 5-40°C/20-90% non-condensing | |
| Dimensions | About L370*W495*H668 | |
| Body weight | Approx. 30kg | |
