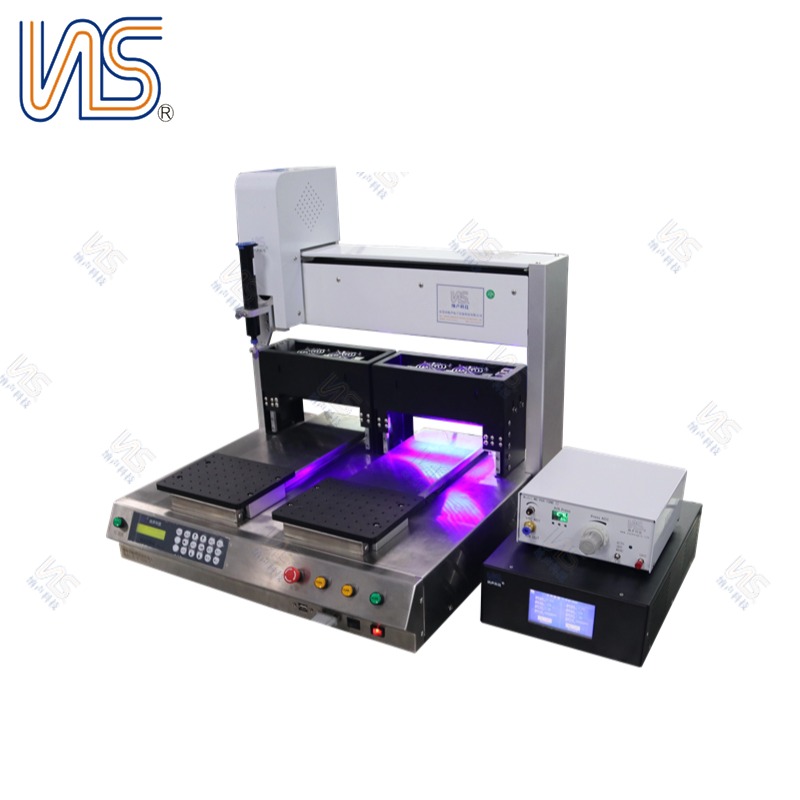

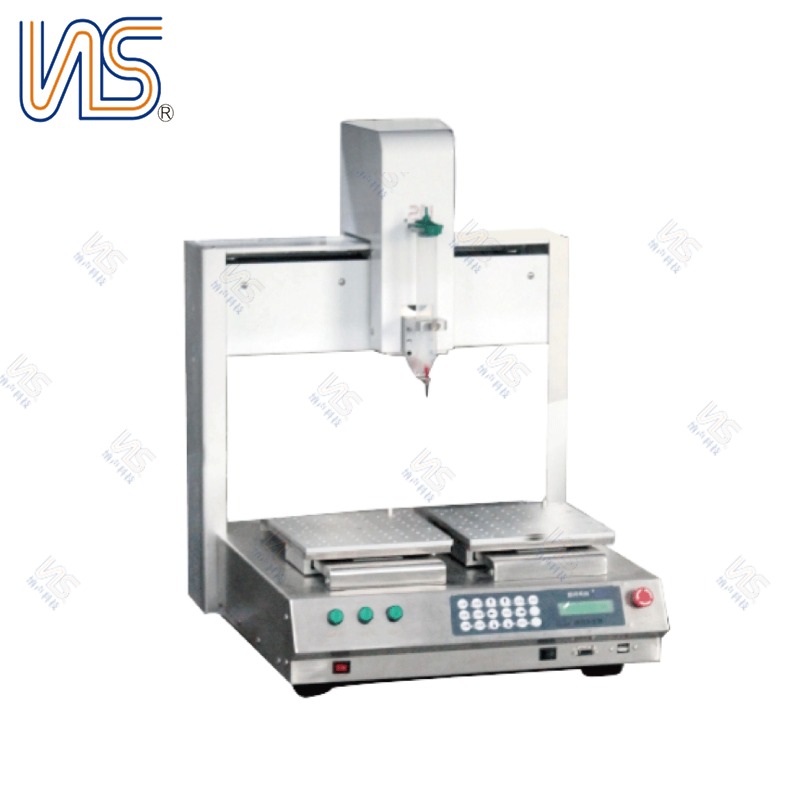

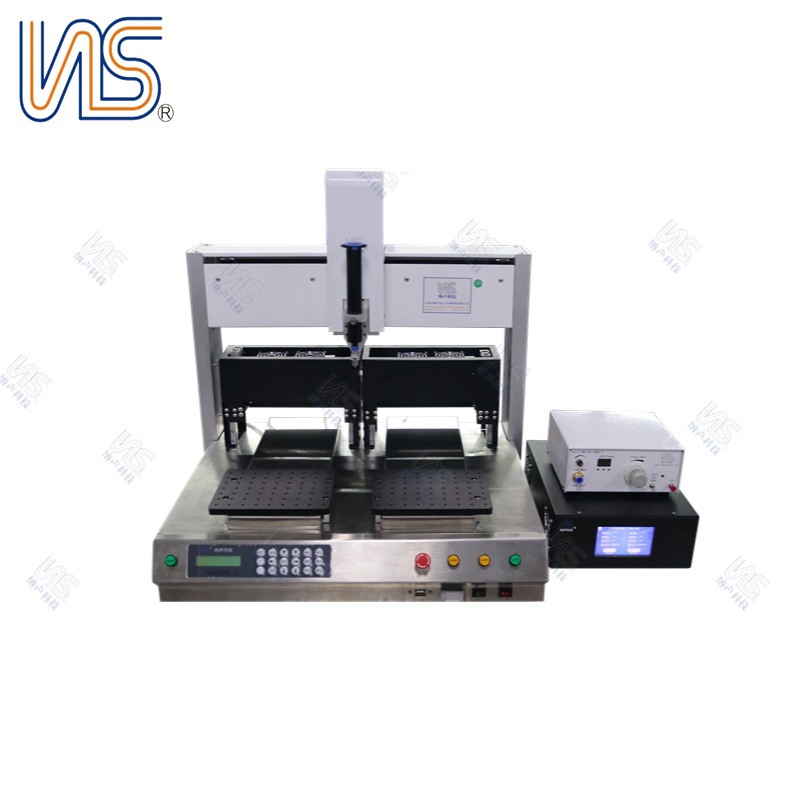

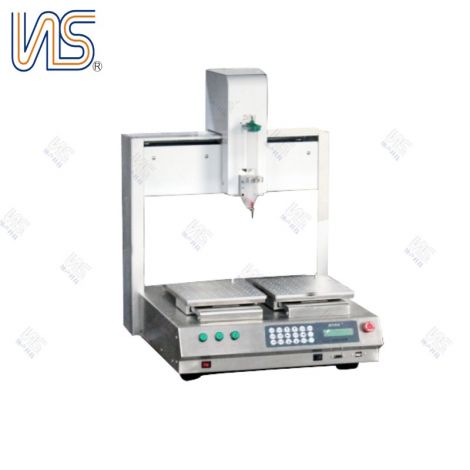

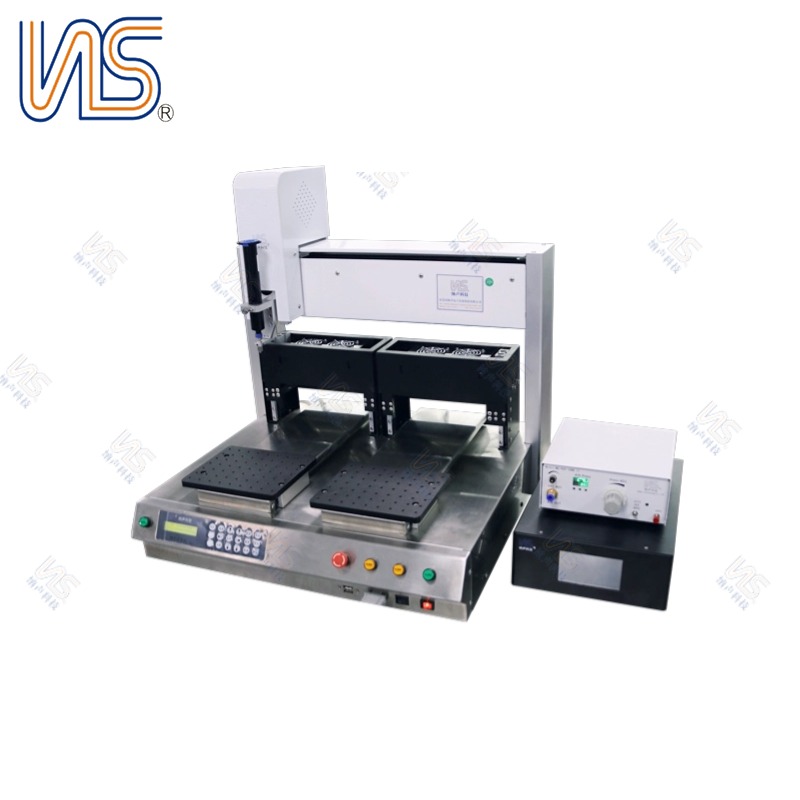

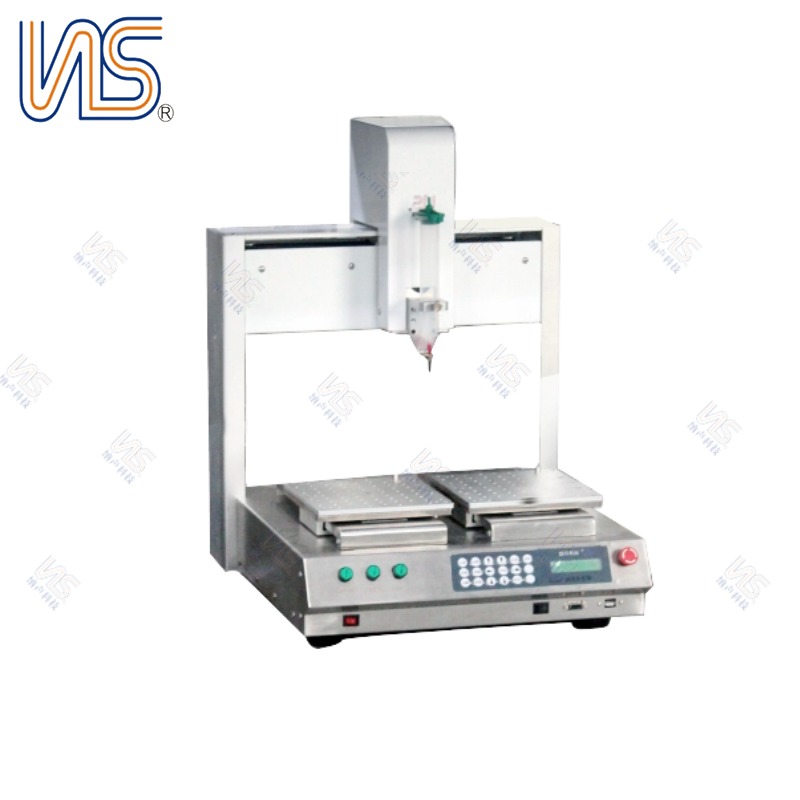

Peculiarity:
1. Double Y platform, alternating operation, improving production efficiency;
2. Simple and convenient operation, high speed and accuracy. (1 times higher than that of similar products);
3. A comprehensive dispensing process solution, including the functions of closing the glue in advance, opening the glue later, lifting at an oblique position, changing speed during movement, setting the number of closed graphics laps, etc. setting the number of closed graphics laps, etc.
Peculiarity:
1. Double Y platform, alternating operation, improving production efficiency;
2. Simple and convenient operation, high speed and accuracy. (1 times higher than that of similar products);
3. A comprehensive dispensing process solution, including the functions of closing the glue in advance, opening the glue later, lifting at an oblique position, changing speed during movement, setting the number of closed graphics laps, etc. setting the number of closed graphics laps, etc.
| Technical parameters： | ||
| Range of motion | (X/Y/Z axis) 300/300/100mm | |
| Maximum load | （Y/Z 轴）8kg/4kg | |
| Movement speed | X/Y axis) 0.1-500MM/S (Z axis) 0.1-300MM/S | |
| Ability to decompose | 0.01 | |
| Repeatability | ≤0.02mm | |
| Drive mode | Japan microstepping precision motor 59 heavy-duty series | |
| Mode of operation | PTP&CP | |
| Transmission mode | Timing belts | |
| Enter the power supply | AC 110V/220V (internal switching) 50-60HZ 1.4kW | |
| Working environment temperature and humidity | 5-40°C/20-90% non-condensing | |
| Dimensions | L525*W485*H635 | |
| Body weight | 40kg | |
| Optional | 1. Adjusting frame assembly; 2. Pneumatic jet valve; 3. Piezoelectric injection valve; 4. Screw valve; 5. Syringe type; 6.AB dispensing system | |
