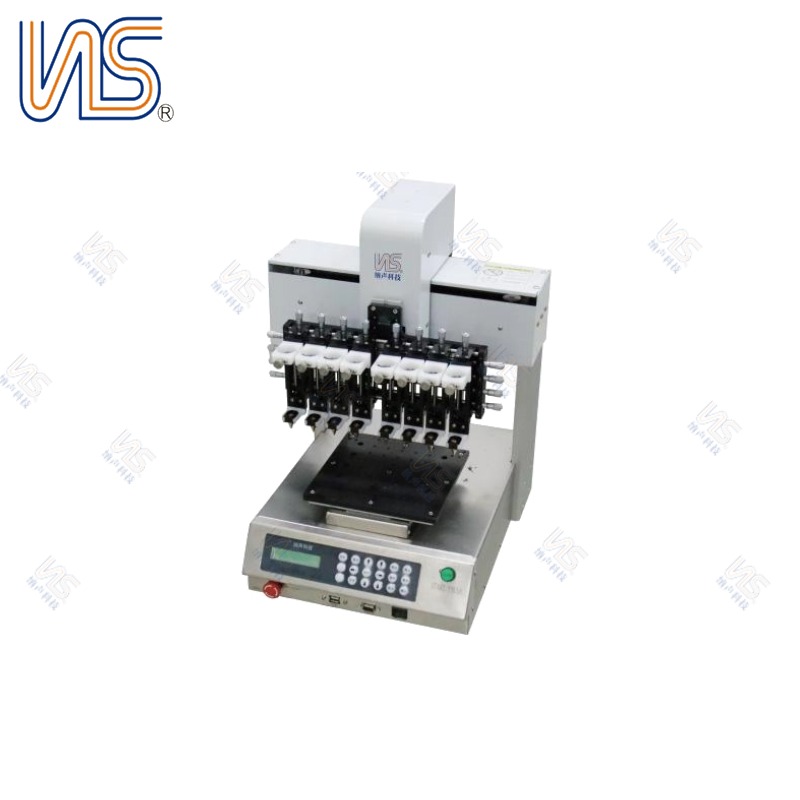

Product features：
1. Any non-planar 3D point path can be realized by using trapezoidal acceleration and deceleration , speed foresight and micro-line interpolation.
2. Realize the graphical WYSIWYG programming mode of online debugging with pc;
3. It is equipped with some glue and vacuum sucti on/blowing function, which is especially suitable for glue coating and product handling of mobile phone speakers, receivers, cameras and other products;
Product features：
1. Any non-planar 3D point path can be realized by using trapezoidal acceleration and deceleration , speed foresight and micro-line interpolation.
2. Realize the graphical WYSIWYG programming mode of online debugging with pc;
3. It is equipped with some glue and vacuum sucti on/blowing function, which is especially suitable for glue coating and product handling of mobile phone speakers, receivers, cameras and other products;
| technical parameter | ||
| Platform moving speed type | X/Y axis: 0.1-500mm/s, Z axis: 300mm/s | |
| Range of motion stroke | （X）225*（Y）200*（Z）80mm | |
| repeatability | ±0.01mm | |
| Memory storage | Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY). | |
| 1/0Newsl | 4nputs | |
| Input power supply | AC110V/220V/50-60HZ power 150W | |
| type of drive | Japanese micro-stepping precision motor/high precision motor system (servo system can be selected) | |
| Motion interpolation function | Any route in 3D space can be used. | |
| Working environment humidity | 5-40°C/20-90% | |
| outline dimension | L 380*W 410*H510mm /28KG | |
