| technical parameter | ||||
| Precision series |
|
|
|
|

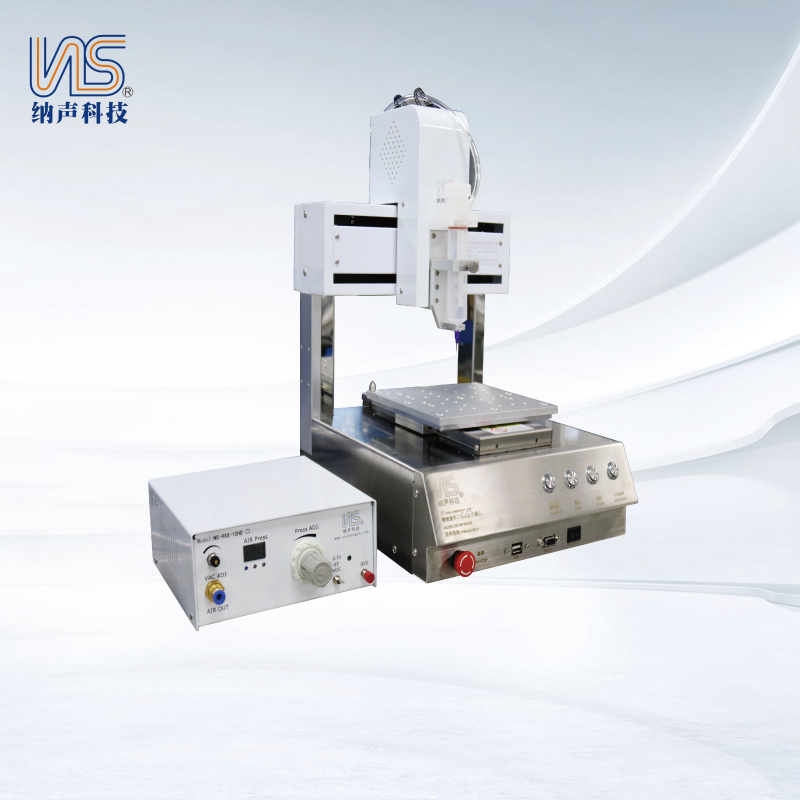

| product name | Precision four-axis dispensing machine | Heavy-duty three-axis dispensing machine | Precision double y four-axis dispensing machine | Precision three-axis dispensing machine |
| product model | NS.SP.925B-W1 | NS.SP.925B | NS.SP.930BF/940BF-Y | NS.SP.930BF/940BF |
| Platform moving speed type | X/Y axis: 0.1-500mm/s, Z axis: 300mm/s | X/Y axis: 0.1-500mm/s, Z axis: 200mm/s | ||
| Range of motion stroke | （X）200*（Y）250*（Z）80mm | （X）225*（Y）200*（Z）80mm | (X)500*(Y)300*300*(Z) 100mm(stroke can be customized) | (X)300*(Y)300*(Z) 100mm(stroke can be customized) |
| repeatability | ±0.01mm | |||
| Memory storage | Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY). | |||
| 1/0 x1 | 4nputs | |||
| Input power supply | AC110V/220V/50-60HZ power 150W | |||
| type of drive | Japanese micro-stepping precision motor/high precision motor system (servo system can be selected) | |||
| Motion interpolation function | Any route in 3D space can be used. | |||
| Working environment humidity | 5-40°C/20-90% | |||
| outline dimension | L370*W495*668mm 50KG | L 380*W 410*H510mm /28KG | L 725*W 685*H635mm /30KG | L513*W 484*H605mm /35KG |
| Product features | 1. Simple and convenient operation, high speed and accuracy. (1 times higher than that of simil ar products); 2. Realize the online debugging function with PC, and realize the non-planar 3D path by grap hical WYSIWYG programming; 3. A comprehensive dispensing process solution , including the functions of closing the glue in advance, opening the glue later, lifting at an oblique position, ment, setting the number of closed graphics laps, etc. | 1. Any non-planar 3D point path can be realized by using trapezoidal acceleration and deceleration , speed foresight and micro-line interpolation. 2. Realize the graphical WYSIWYG programming mode of online debugging with pc; 3. It is equipped with some glue and vacuum sucti on/blowing function, which is especially suitable for glue coating and product handling of mobile phone speakers, receivers, cameras and other products; | 1. Double Y platform, alternating operation, impr oving production efficiency; 2. Simple and convenient operation, high speed and accuracy. (1 times higher than that of similar products); 3. A comprehensive dispensing process solution, including the functions of closing the glue in advance, opening the glue later, lifting at an oblique position, changing speed during movem ent, setting the number of closed graphics laps, etc. | 1. Suitable for large-size products, three-dimensional correction, and arbitrary realization of non-planar 3D paths; 2. Simple and convenient operation, high speed and accuracy. (1 times higher than that of similar product s); 3. A comprehensive dispensing process solution, inc luding the functions of closing the glue in advance, opening the glue later, lifting at an oblique position, changing speed during movement, setting the num ber of clo |
