  • On-line double-track double-head locking screw machine (belt type)

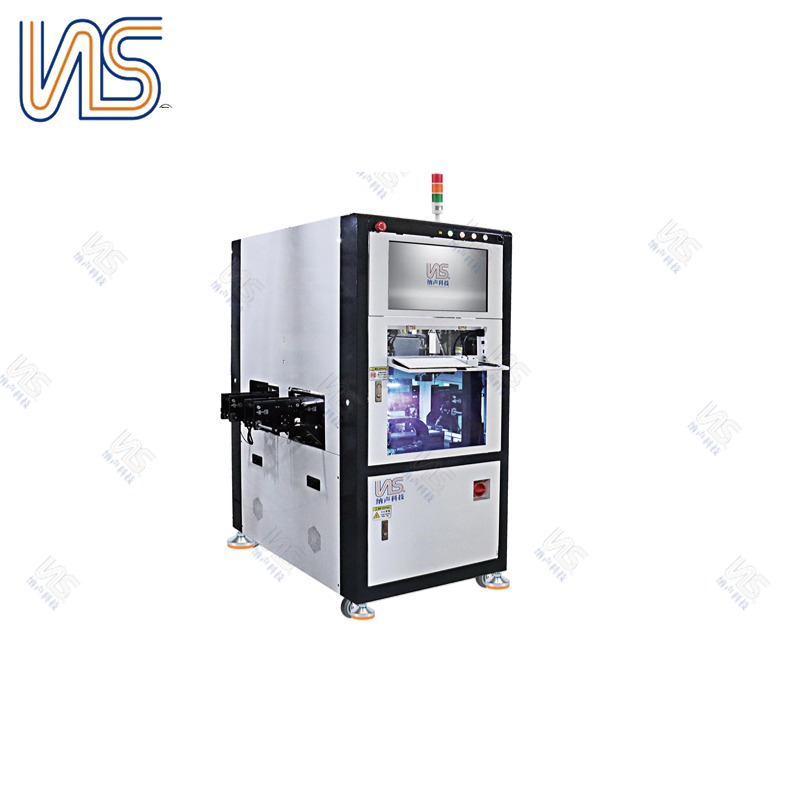

On-line double-track double-head locking screw machine (belt type)

Product features

Feeding mode: magnetic suction/adsorption/blowing (optional)

1、Adapt to various locking surfaces, modular design, flexible deployment, and quick production change;

2、Real-time monitoring of the locking process improves the efficiency by more than 80% compared with manual work;

3、Standard visual deviation correction, even if the workpiece deviation can be easily fixed;

4、It has the function of product formula, and avoids the trouble of repeated teaching when switching saved products;

Share
Product parameter
product modelNS.SF.5577-PL-LD
Locking range350*300*100(x*y*z
Transmission modeBelt+motor
Linear guideShangyin/THK/yintai
positioning accuracy±0.02mm
control systemMulti-axis motion control card + PC upper computer
Feeding modeAdsorption/magnetic attraction
Number of feeders2 groups
Locking efficiency1~1.5S/PCS
communication method232/485
Input power supplyAC220V 50Hz
powerAC220V /800W
Input air pressure0.4-0.6MPa
Equipment power1.5KW
outline dimension(L*W*H)1176*1200*1645mm
Body weight850KG
